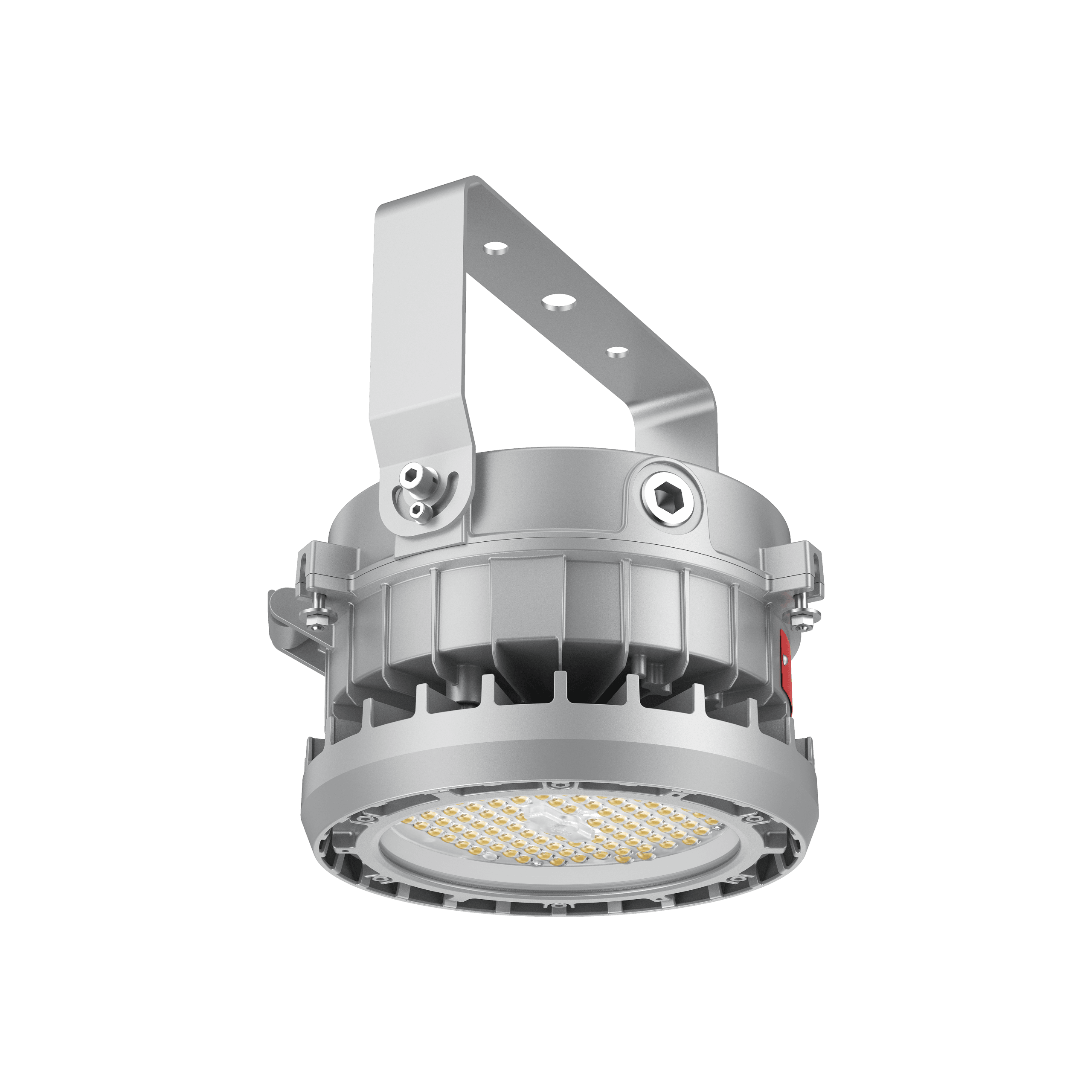

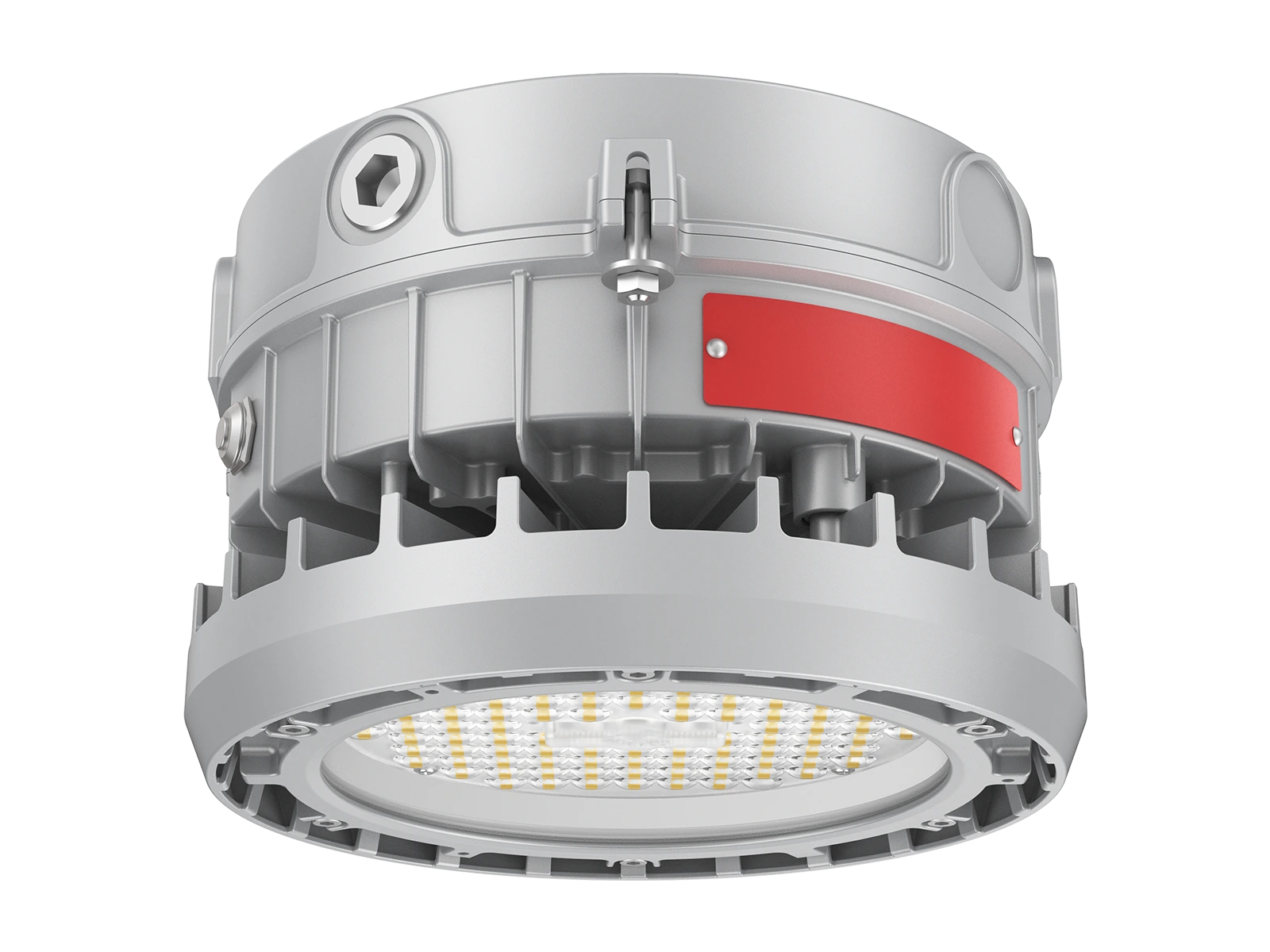

ATEX Zone 2 LED High Bay Explosion Proof Zone 21/22 IP66 ATEX IECEx – Titan
Price range: £337.13 through £408.04
Product Specifications
Additional information
| Warranty | 5 Years |
|---|---|
| Hazardous Zone | Zone 1 (Gas), Zone 21/22 (Dust) |
| Wattage | 40W, 50W, 60W, 75W |
| Lumen Output | 40W – 6,400lm / 50W – 8,000lm / 60W – 9,600lm / 75W – 12,000lm |
| Colour Temperature | 4000K, 5000K, 6500K |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Beam Angle | 120°, 90° |
| CRI | >70 |
| Lifetime | L70B50 >164,000hrs @ 25°C |
| Input Voltage | AC120-277V |
| Input Frequency | 50/60Hz |
| Operating Temperature | -40°C to +65°C |
| Diffuser Material | Tempered Glass |
| Finish | Grey Powder Coating |
| Weight | 5.5kg |
| ATEX Standard | Â II 3G Ex nR IIC T6/T5 Gc |
| IECEx Standard | Ex nR IIC T6/T5 Gc |
| Housing | Copper-free (< 0.4%) Aluminum |
| Emergency Time | 3hrs @ 6W |
| Emergency Type | Emergency, Non-Emergency |
| Emergency Battery Type | LiFePO4 (Lithium Iron Phosphate) Manual Test |
| Power Factor | >0.95 |
| THD | <20% |
| Surge Protection | 10KV |
| Corrosion Class | C4 |
| Mounting Type | Bracket |
Full Description
ATEX Zone 2 LED High Bay Explosion Proof Zone 21/22 IP66 ATEX IECEx – Titan – Hazardous Area Lighting for Industrial Environments
The ATEX Zone 2 LED High Bay (Titan) is a robust, high-performance lighting solution specifically engineered for hazardous and explosive atmospheres. Designed for use in demanding industrial environments, this ATEX-rated high bay delivers exceptional reliability, efficiency, and safety, making it the ideal choice for industries such as oil & gas, petrochemical plants, chemical processing, offshore platforms, heavy manufacturing, and industrial warehouses.
Certified for use in Zone 2 (gas) and Zone 21/22 (dust) hazardous areas, the Titan provides complete peace of mind where safety is critical. Its ATEX and IECEx compliance ensures that the luminaire is designed to prevent ignition risks in potentially explosive environments, protecting both personnel and assets.
Available in 40W, 50W, 60W, and 75W variants, the ATEX Zone 2 LED High Bay (Titan) range offers flexible lighting solutions to suit a wide variety of applications. With multiple colour temperature options including 4000K, 5000K, and 6500K, you can tailor lighting output to match operational requirements—whether for improved visibility, productivity, or safety compliance.
Built for performance, the Titan ATEX High Bay delivers up to 160 lumens per watt, ensuring high energy efficiency and reduced operational costs without compromising on brightness. Its durable construction features a corrosion-resistant aluminium housing and IP66 rating, providing protection against dust ingress and powerful water jets—perfect for harsh industrial environments.
Designed for Safety-Critical Applications
In hazardous industries, lighting is not just about visibility—it’s a critical component of workplace safety. Poor or inadequate lighting can increase the risk of accidents, reduce productivity, and compromise compliance with health and safety regulations.
The Titan ATEX Zone 2 LED High Bay is designed to:
- Minimise the risk of ignition in explosive atmospheres
- Improve visibility in high-risk operational areas
- Support compliance with ATEX directives and workplace safety standards
- Enhance worker safety, especially in confined or high-traffic industrial zones
Emergency Lighting for Added Protection
For environments where power loss could pose serious safety risks, the Titan is available in an emergency version equipped with a LiFePO4 battery. This provides up to 3 hours of emergency lighting, ensuring safe evacuation and continued visibility during outages.
Key Features:
- ATEX & IECEx certified for hazardous areas
- Suitable for Zone 2 & Zone 21/22 environments
- Available in 40W, 50W, 60W & 75W
- Colour temperatures: 4000K / 5000K / 6500K
- High efficiency up to 160lm/W
- IP66 rated for harsh conditions
- Optional emergency backup (3-hour LiFePO4 battery)
- Long lifespan up to 164,000 hours (L70)
Whether installed in refineries, chemical plants, manufacturing facilities, or logistics hubs, the Titan ATEX LED High Bay delivers dependable, compliant, and energy-efficient lighting where it matters most.
NEC & CEC:
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
Class III
AEx:
Ex nR IIC T5 Gc
Ex tb IIIC T95℃/T100℃ Db
Class I, Zone 2, AEx nR IIC T5 Gc
Zone 21, AEx tb IIIC T95℃/T100℃ Db
IECEx:
Ex nR IIC T6/T5 Gc
Ex tb IIIC T80℃/95℃ Db IP66
ATEX:
 II 3G Ex nR IIC T6/T5 Gc
 II 2D Ex tb IIIC T80℃/95℃ Db IP66
** Please note this product is supplied as fixed wattage with a mounting bracket and 2 x M20 x 1.5 glands for cable entry as standard. One entry is supplied with a stopping plug prior to shipping. All other variants advertised on the product datasheet are optional extras and must be specified prior to ordering.**
Reviews
Delivery & Returns
Delivery: 3-4 Weeks
Returns: Faulty From New Returns:
If you receive an item from us which is faulty from new, you must report this to us as soon as possible. We require you to send the faulty item back to us for testing, you must cover the cost of the returns postage. Once the returned product has been tested, if found to be faulty, we will issue a replacement and refund you for the returns postage. You must provide us with your receipt for the returns postage in order to receive a refund for this. We will not accept responsibility for an item which is faulty from new if reported to us after 30 days of purchase, so please ensure you check the goods you receive as soon as possible.
Warranty Replacements:
If a product has become faulty and is covered under our warranty, we must receive the product back for testing prior to dispatching a free of charge replacement, you must cover the cost of the returns postage. Once the product has been tested, if found to be faulty, we will issue a full refund for your returns postage. You must provide us with your receipt for the returns postage in order to receive a refund for this.
If you require an advanced replacement under warranty, you must pay for the replacement upfront and return the faulty item to us, you must cover the cost of the returns delivery. Once the item has been tested, if found to be faulty, we will issue a refund for the advanced replacement and also your returns postage. You must provide us with your receipt for the returns postage in order to receive a refund for this.
Unwanted Items:
If you have shopped with us and wish to return the items you purchased, you must return them to us within 30 days. We can only issue a full refund if the goods returned are unused, undamaged and in the original packaging. If wanting to return an unused item for a refund after the stated 30 day period, we will charge a 20% restocking fee, we will also deduct any original delivery fee’s.Â
Data Sheets
