4ft ATEX Rated Zone 1,21 & 2,22 LED Linear Explosion Proof Batten IECEx – Zenith

● In stock

£400.58

Inc. VAT Ex. VAT: £333.82

100W, 50W, 75W
10,500lm, 7000lm, 14,000lm
IP66
Estimated Delivery: 3-5 Weeks

Wattage

Colour Temperature

Clear

Free delivery over £200

Up to 7 year warranty

No hassle returns

Expert advice: 01642 057722

Need a bulk quote? Create a Trade Account!

Request a trade account for discounted pricing

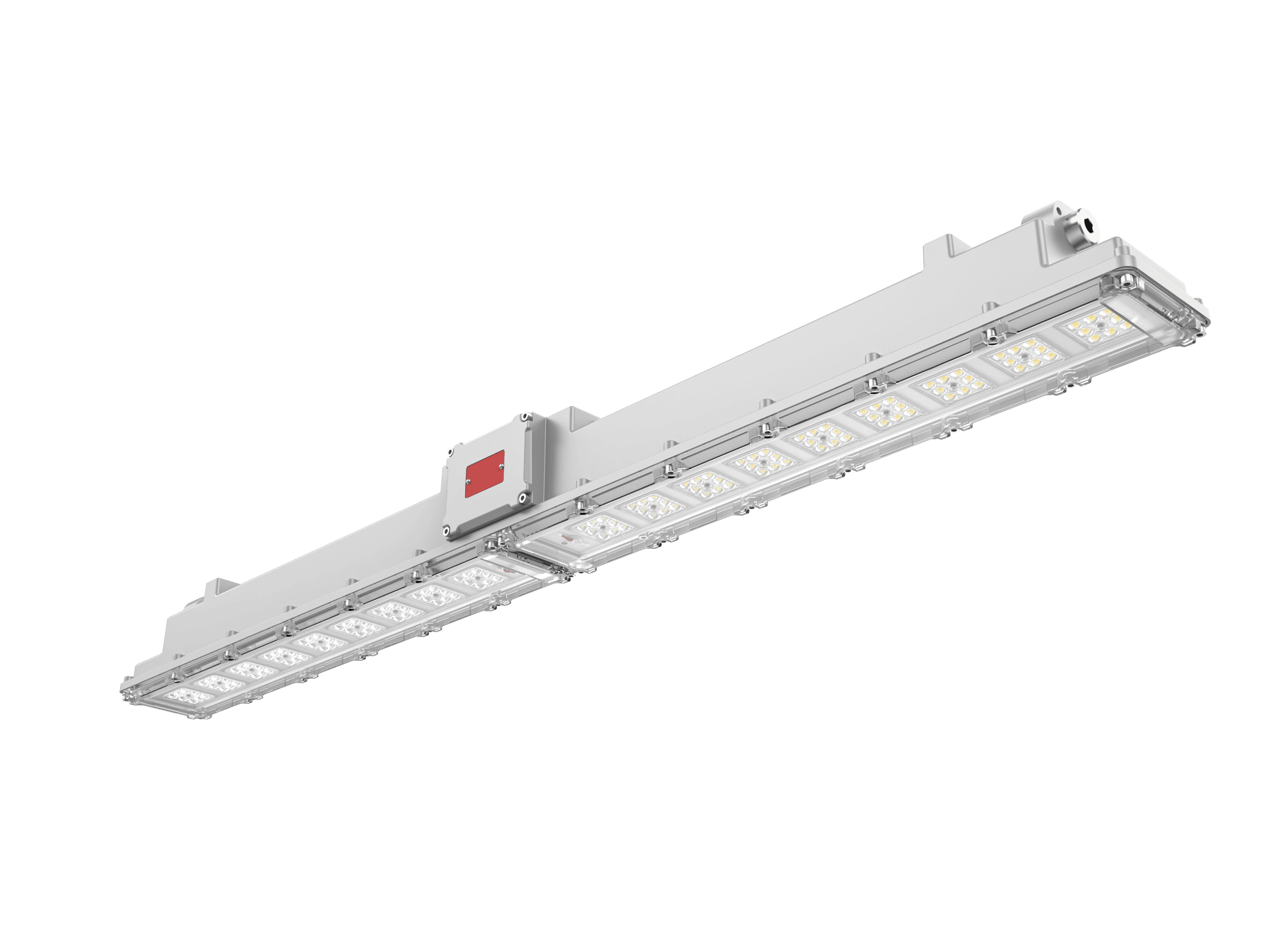

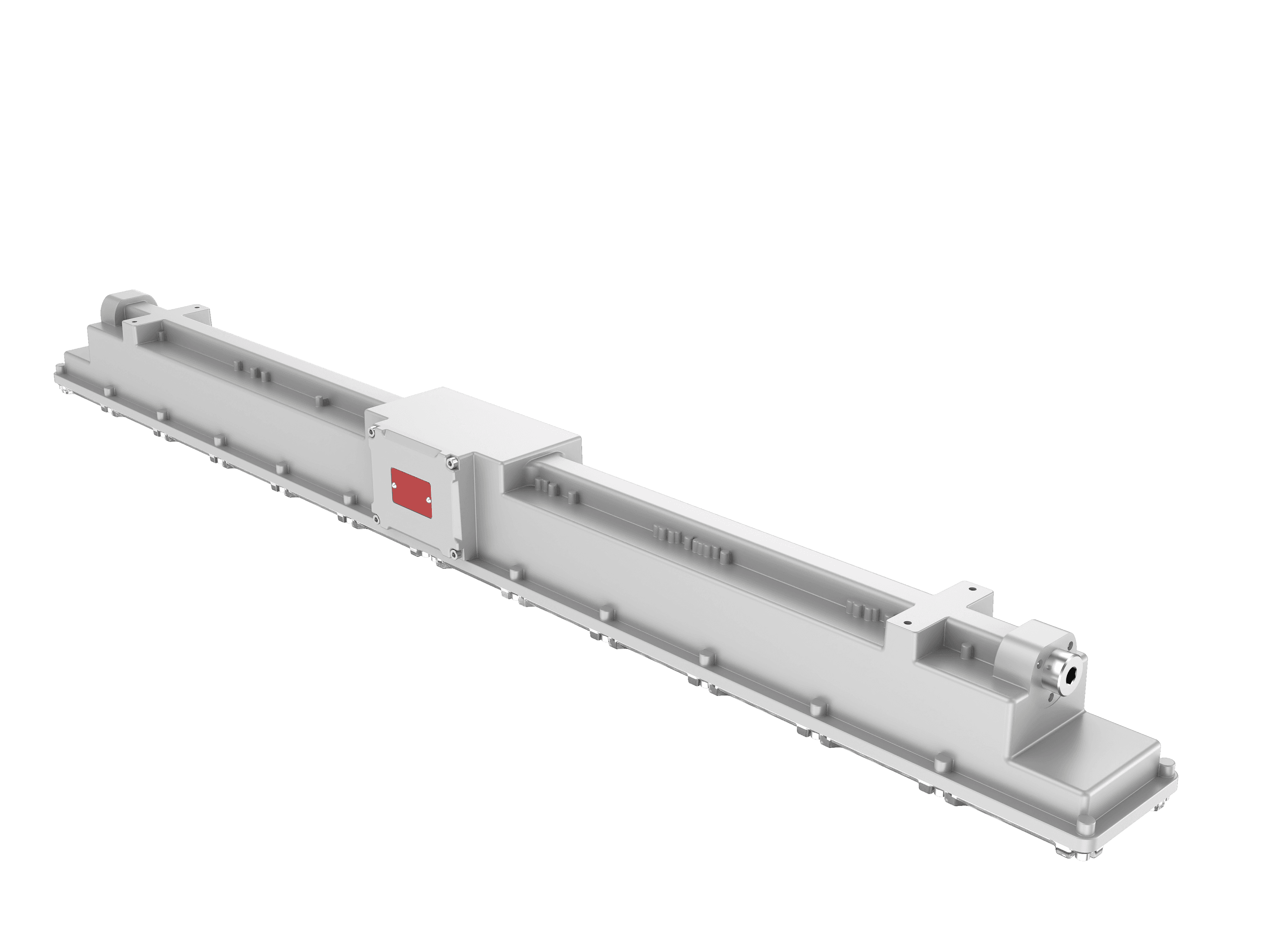

4ft ATEX Rated Zone 1,21 & 2,22 LED Linear Explosion Proof Batten IECEx – Zenith

The 4ft ATEX Rated Zone 1,21 & 2,22 LED Linear is a high-performance explosion proof LED lighting solution engineered for hazardous area environments where safety, reliability, and long-term durability are critical. Designed for use in Zone 1 & Zone 2 gas atmospheres and Zone 21 & Zone 22 dust environments, the Zenith range delivers dependable illumination for demanding industrial applications including oil & gas facilities, chemical processing plants, offshore platforms, grain handling facilities, marine environments, paint spraying areas, and heavy industrial manufacturing.

Built with a robust fibreglass reinforced polycarbonate (GRP) housing, the Zenith luminaire offers exceptional resistance against corrosion, vibration, chemicals, and harsh operating conditions. The fixture is fully certified to both ATEX and IECEx standards, making it suitable for global hazardous area installations requiring compliant explosion proof LED lighting.

Available in both 2ft and 4ft versions, the Zenith series includes multiple power outputs to suit a wide range of applications:

2ft – 40W and 50W
4ft – 50W, 75W and 100W

Delivering up to 15,000 lumens, the Zenith provides high-efficiency illumination with excellent optical performance for walkways, process areas, loading bays, plant rooms, and industrial workspaces. Select from 120°, Type III or Type V beam distributions, allowing the luminaire to be optimised for either aisle lighting or wide area coverage.

Designed with installers in mind, the Zenith features tool-free installation, side-entry wiring access, and plug-and-play terminals to reduce installation time in hazardous locations. The fixture also supports loop-in / loop-out wiring, making it ideal for continuous linear lighting systems across industrial facilities. Multiple mounting configurations are available including ceiling mount, trunnion mount, pendant mount, hoop mount, recessed mount, and loop mount for maximum installation flexibility.

The Zenith explosion proof linear LED fitting is rated IP66 for complete protection against dust and powerful water jets, while the IK08 impact rating ensures reliable mechanical protection in demanding environments. Integrated 10kV surge protection, a high power factor above 0.95, and optional 0-10V dimming provide enhanced performance and control for modern industrial lighting systems.

Operating temperatures range from -40°C up to +65°C depending on model configuration, making the Zenith suitable for both extreme cold and high ambient temperature environments. Standard colour temperatures include 4000K, 5000K and 6500K, with optional alternatives available for specialist applications.

With a rated lifespan exceeding 100,000 hours (L80) and backed by a 5-year warranty, the Zenith Zone 1 ATEX Linear LED Luminaire delivers a low-maintenance, energy-efficient hazardous area lighting solution trusted by industrial professionals worldwide.

Key Features

Zone 1, Zone 2, Zone 21 & Zone 22 certified
ATEX & IECEx approved
Explosion proof linear LED luminaire
Available in 2ft and 4ft versions
Power outputs: 40W, 50W, 75W & 100W
Up to 15,000 lumens
IP66 / IK08 protection
GRP corrosion-resistant housing
120° Beam Angle as standard
0-10V dimming available (please specify when ordering)
Tool-free installation
Loop-in / loop-out wiring
Multiple mounting options
10kV surge protection
5-year warranty

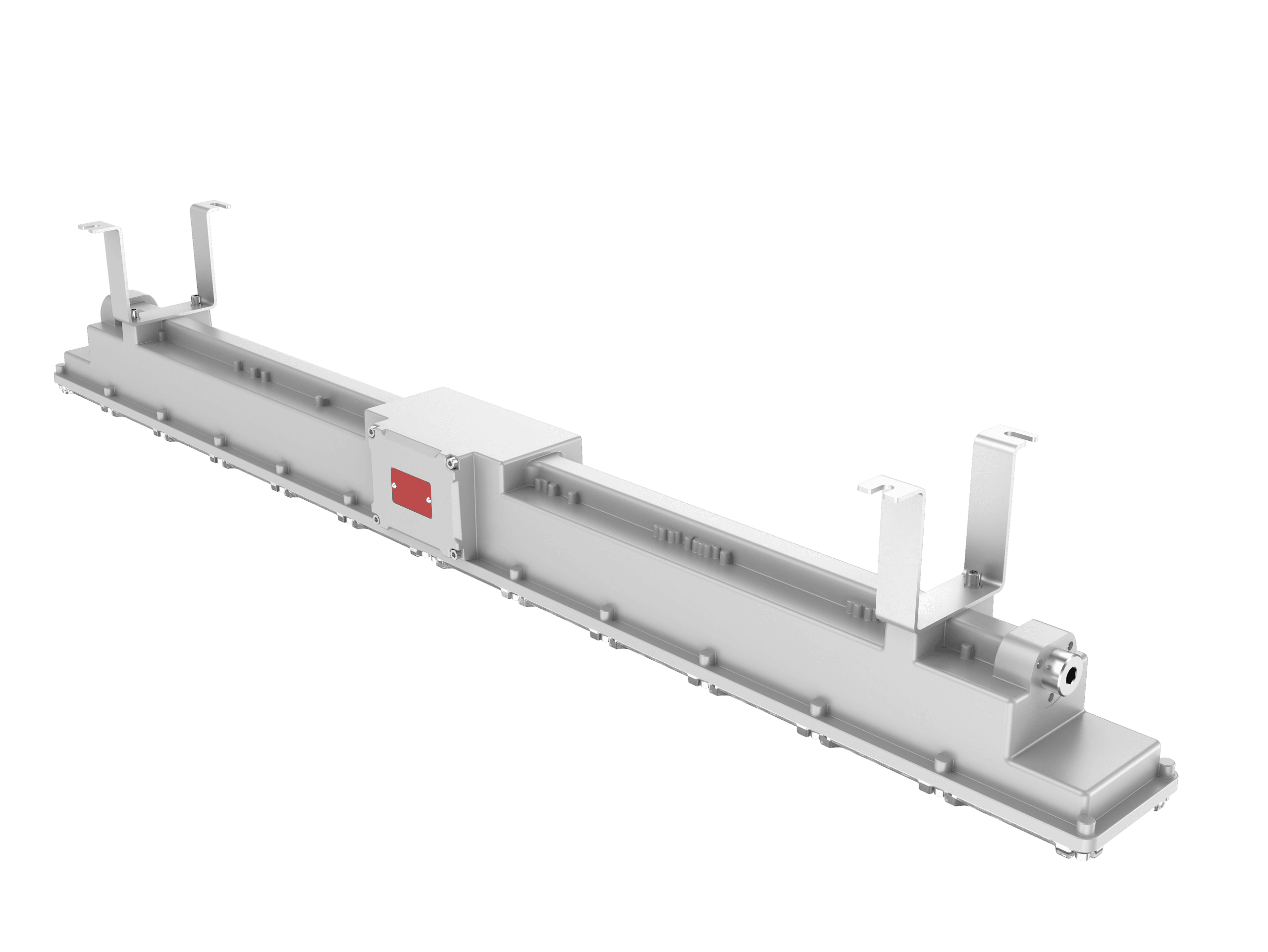

NOTE: LUMINAIRE IS SUPPLIED WITH CEILING MOUNT BRACKETS AS STANDARD, PLEASE CONTACT US IF YOU REQUIRE ALTERNATIVE MOUNTING METHODS. LUMINAIRE IS SUPPLIED WITHOUT GLANDS AS STANDARD.

Additional information

Warranty	5 Years
Type	Batten
Wattage	100W, 50W, 75W
Colour Temperature	4000K, 5000K, 6500K
Lumen Output	10,500lm, 7000lm, 14,000lm
IP Rating	IP66
IK Rating	IK08
Emergency	No
Controls	0-10V Dimming, None
Certifications	IECEx: Ex eb mb IIC T5/T4 Gb Ex tb IIIC T95℃/T100℃ Db ATEX: II 2G Ex eb mb IIC T5/T4 Gb II 2D Ex tb IIIC T95℃/T100℃ Db
Housing	GRP – Fiberglass Reinforced Polycarbonate
Diffuser Material	Polycarbonate
Beam Angle	120°
Cable Entry	M25X1.5
Lifetime	L80B50 102,300hrs @25°C
Corrosion Resistance	C4 (ISO 9223:2012)
CRI	>70
Surge Protection	10KV
Power Factor	>0.95
SDCM	<5
Body Colour	Grey Body
